Tangential-Static-Mixers
|
| For any further information or for an enquiry please click here. |
| |
|
| |
|
|
Model
|
Specification
|
Download
|
 |
Description
|
Technical specification:
|

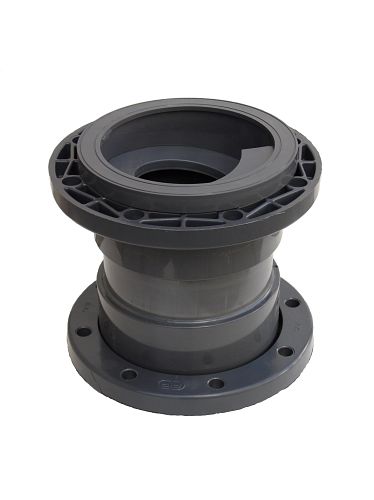

| The Tangential-Static-Mixer TSM is a mixing device completely of PVC-U for many applications of homogenuous distribution of several liquid and/or gaseous media. It consists of a mixing tube with inside welded mixing elements, which are specially designed for highest mixing degree at an extremely low pressure drop. Form and dimension of the mixing elements effects an intensive mixing of the media, which have to be mixed.
Applications:
|
- Material: PVC-U
- Mounting: Inline Mounting between flanges
- Sizes: DN10.......DN400
- Maximum pressure: 4 bar
|
|
 |
| |
|
|
 |
Description
|
Technical specification:
|
| The Tangential-Static-Mixer TSM is a mixing device completely of PVC-U for many applications of homogenuous distribution of several liquid and/or gaseous media. It consists of a mixing tube with inside welded mixing elements, which are specially designed for highest mixing degree at an extremely low pressure drop. Form and dimension of the mixing elements effects an intensive mixing of the media, which have to be mixed.
Applications:
- Mixing of gases in water
- Mixing of chemicals in water
- Mixing of gases
|
-
Material: Stainless steel
-
Sizes: DN10.......DN2000
-
Maximum pressure: as required
-
Mounting: Inline mounting between flanges
|
|
|
Further sizes, materials, inliner etc. on request
|
|
| |
|
|
|
|
|
